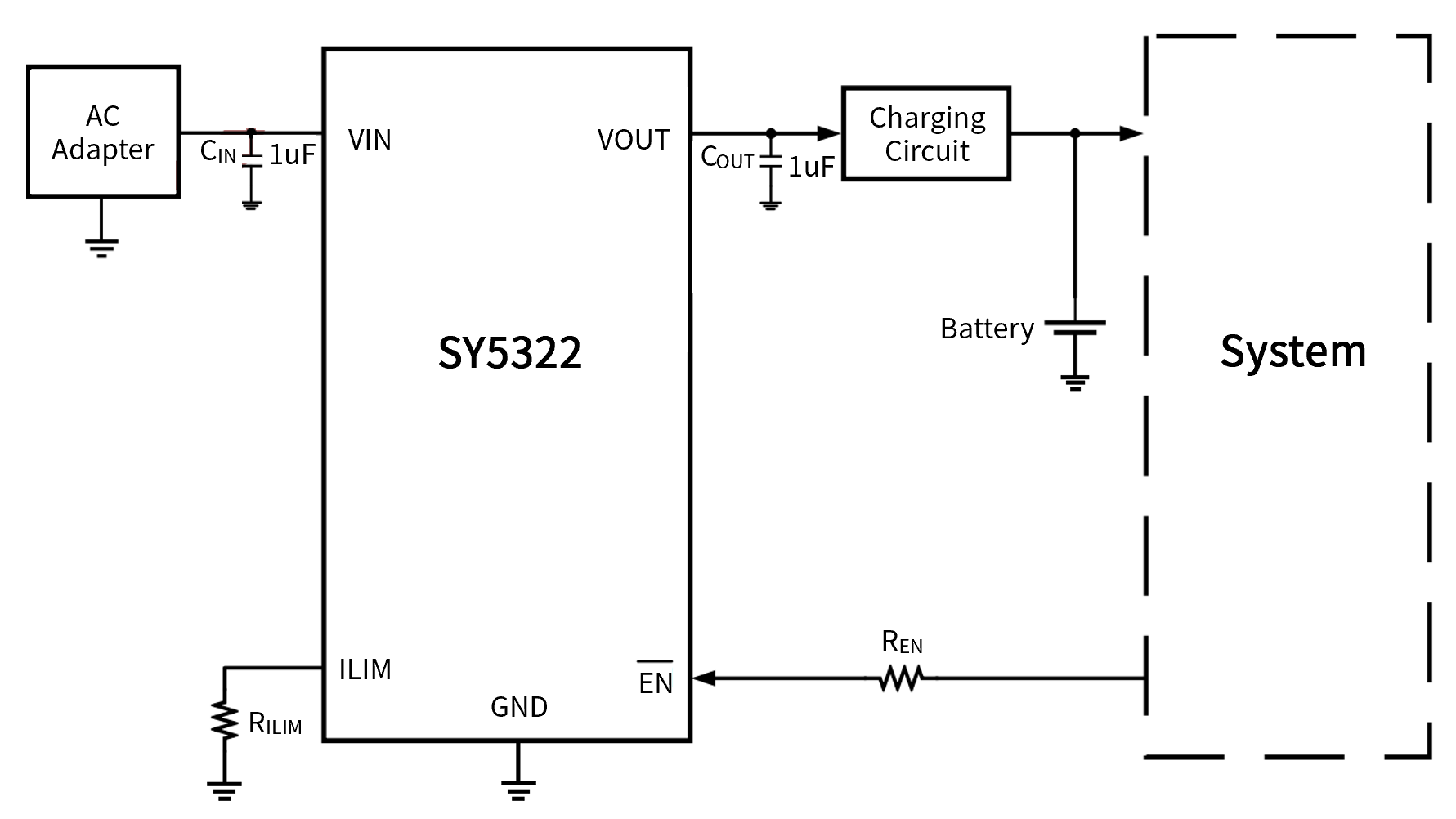

The SY5322 is a highly integrated circuits with input under-voltage and over-voltage protection, abnormal load current protection, over temperature protection. The SY5322 is used at the front end of charging circuits or low-voltage systems to protect the low-voltage system from abnormal input faults and can withstand abnormal input voltages up to 28V. When the input voltage exceeds the overvoltage protection threshold, the internal MOSFET will be turned off within 1μs to protect the back-end low-voltage system. the IC can limit the input current through the resistance connecting ILIM and ground to prevent the input current of the low-voltage system from being too large; When detecting that the temperature exceeds the over temperature threshold, the IC will shut down the MOSFET and stops the power supply.
The SY5322 can be used to SOT23-6 package. The rated temperature is -40℃~+85℃.
28V input withstand voltage
Input Over Voltage Protection
The input OVP protection shutdown time is less than 1uS
Soft-start to prevent Inrush currents
Soft-stop to prevent voltage spikes
Support Input Current from 100mA to 1.5A；default 100mA if ILIM be left floating or 1.5A if ILIM be connected to ground
±10% OCP accuracy (ILIM be connected a resistance to ground)
Over temperature protection
EN Function
SOT23-6 Package
Smart phone, mobile phone
PADS
MP3 Player
Low-power handheld devices
Bluetooth Earphone
